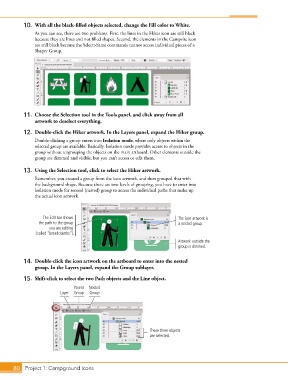

Page 68 - CC2018_AI_Look_Inside

10. With all the black-filled objects selected, change the Fill color to White.
As you can see, there are two problems. First, the lines in the Hiker icon are still black
because they are lines and not filled shapes. Second, the elements in the Campsite icon
are still black because the Select>Same commands cannot access individual pieces of a
Shaper Group.

11. Choose the Selection tool in the Tools panel, and click away from all
artwork to deselect everything.

12. Double-click the Hiker artwork. In the Layers panel, expand the Hiker group.
Double-clicking a group enters into Isolation mode, where only objects within the
selected group are available. Basically, Isolation mode provides access to objects in the
group without ungrouping the objects on the main artboard. Other elements outside the
group are dimmed and visible, but you can’t access or edit them.

13. Using the Selection tool, click to select the Hiker artwork.
Remember, you created a group from the icon artwork, and then grouped that with
the background shape. Because there are two levels of grouping, you have to enter into
Isolation mode for second (nested) group to access the individual paths that make up
the actual icon artwork.

The Edit bar shows The icon artwork is
the path to the group a nested group.
you are editing
(called “breadcrumbs”).

Artwork outside the
group is dimmed.

14. Double-click the icon artwork on the artboard to enter into the nested
group. In the Layers panel, expand the Group sublayer.

15. Shift-click to select the two Path objects and the Line object.
Parent Nested
Layer Group Group

These three objects
are selected.

80 Project 1: Campground Icons
