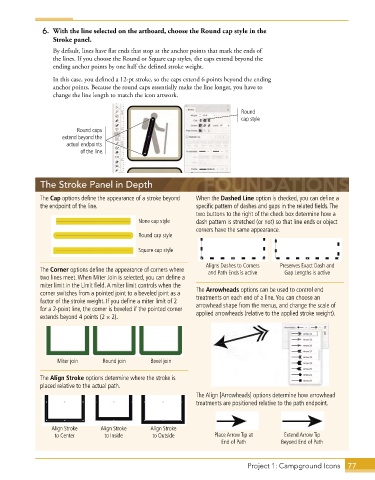

6. With the line selected on the artboard, choose the Round cap style in the
Stroke panel.
By default, lines have flat ends that stop at the anchor points that mark the ends of
the lines. If you choose the Round or Square cap styles, the caps extend beyond the
ending anchor points by one half the defined stroke weight.
In this case, you defined a 12-pt stroke, so the caps extend 6 points beyond the ending
anchor points. Because the round caps essentially make the line longer, you have to
change the line length to match the icon artwork.

Round
cap style
Round caps
extend beyond the
actual endpoints
of the line.

The Stroke Panel in Depth

The Cap options define the appearance of a stroke beyond When the Dashed Line option is checked, you can define a
the endpoint of the line . specific pattern of dashes and gaps in the related fields . The
two buttons to the right of the check box determine how a
None cap style dash pattern is stretched (or not) so that line ends or object
corners have the same appearance .
Round cap style

Square cap style

Aligns Dashes to Corners Preserves Exact Dash and
The Corner options define the appearance of corners where and Path Ends is active Gap Lengths is active
two lines meet . When Miter Join is selected, you can define a
miter limit in the Limit field . A miter limit controls when the
corner switches from a pointed joint to a beveled joint as a The Arrowheads options can be used to control end
factor of the stroke weight . If you define a miter limit of 2 treatments on each end of a line . You can choose an
for a 2-point line, the corner is beveled if the pointed corner arrowhead shape from the menus, and change the scale of
extends beyond 4 points (2 1 2) . applied arrowheads (relative to the applied stroke weight) .

Miter join Round join Bevel join

The Align Stroke options determine where the stroke is
placed relative to the actual path .
The Align [Arrowheads] options determine how arrowhead
treatments are positioned relative to the path endpoint .

Align Stroke Align Stroke Align Stroke
to Center to Inside to Outside Place Arrow Tip at Extend Arrow Tip
End of Path Beyond End of Path

Project 1: Campground Icons 77
