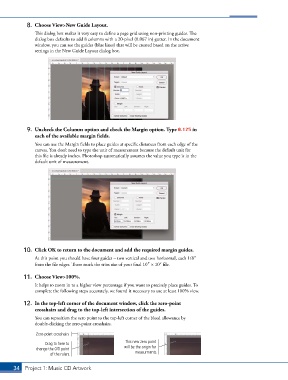

Page 24 - CC2018_PS_Look_Inside

8. Choose View>New Guide Layout.
This dialog box makes it very easy to define a page grid using non-printing guides. The
dialog box defaults to add 8 columns with a 20-pixel (0.067 in) gutter. In the document
window, you can see the guides (blue lines) that will be created based on the active
settings in the New Guide Layout dialog box.

9. Uncheck the Columns option and check the Margin option. Type 0.125 in
each of the available margin fields.
You can use the Margin fields to place guides at specific distances from each edge of the
canvas. You don’t need to type the unit of measurement because the default unit for
this file is already inches. Photoshop automatically assumes the value you type is in the
default unit of measurement.

10. Click OK to return to the document and add the required margin guides.
At this point you should have four guides – two vertical and two horizontal, each 1/8″
from the file edges. These mark the trim size of your final 10″ × 10″ file.

11. Choose View>100%.

It helps to zoom in to a higher view percentage if you want to precisely place guides. To
complete the following steps accurately, we found it necessary to use at least 100% view.

12. In the top-left corner of the document window, click the zero-point
crosshairs and drag to the top-left intersection of the guides.
You can reposition the zero point to the top-left corner of the bleed allowance by
double-clicking the zero-point crosshairs.
Zero-point crosshairs

Drag to here to This new zero point
change the 0/0 point will be the origin for
of the rulers. measurments.

34 Project 1: Music CD Artwork
